The complete
installation starts here.

• Built-in microphone
• 24 infrared LEDs; listed IR range: 25 m
• 12V DC power

• 4 array LEDs; listed IR range: 35 m
• Automatic day/night IR cut
• 12V DC power

• 18 infrared LEDs; listed IR range: 20 m
• 12V DC power

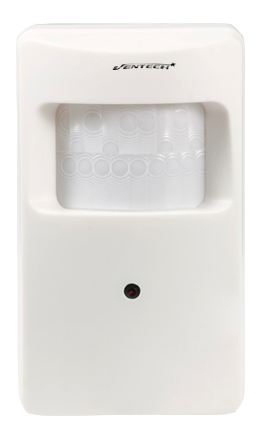

PIR-style describes the enclosure; confirm motion-detection functions for your application.

• Built-in microphone
• Listed IR range: 30 m
• 12V DC power

Infrared LED count differs within the original listing; confirm before ordering.

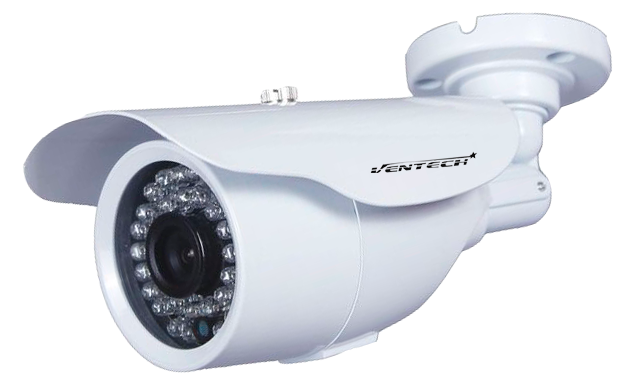

• 36 infrared LEDs; listed IR range: 30 m
• Automatic day/night IR cut
• 12V DC power

• Listed frame rate: 25 fps
• Infrared night viewing

The original specification table also refers to IPC-R11. Confirm the exact device version and current app compatibility.

• 36 infrared LEDs; listed IR range: 30 m
• Metal housing; 12V DC power

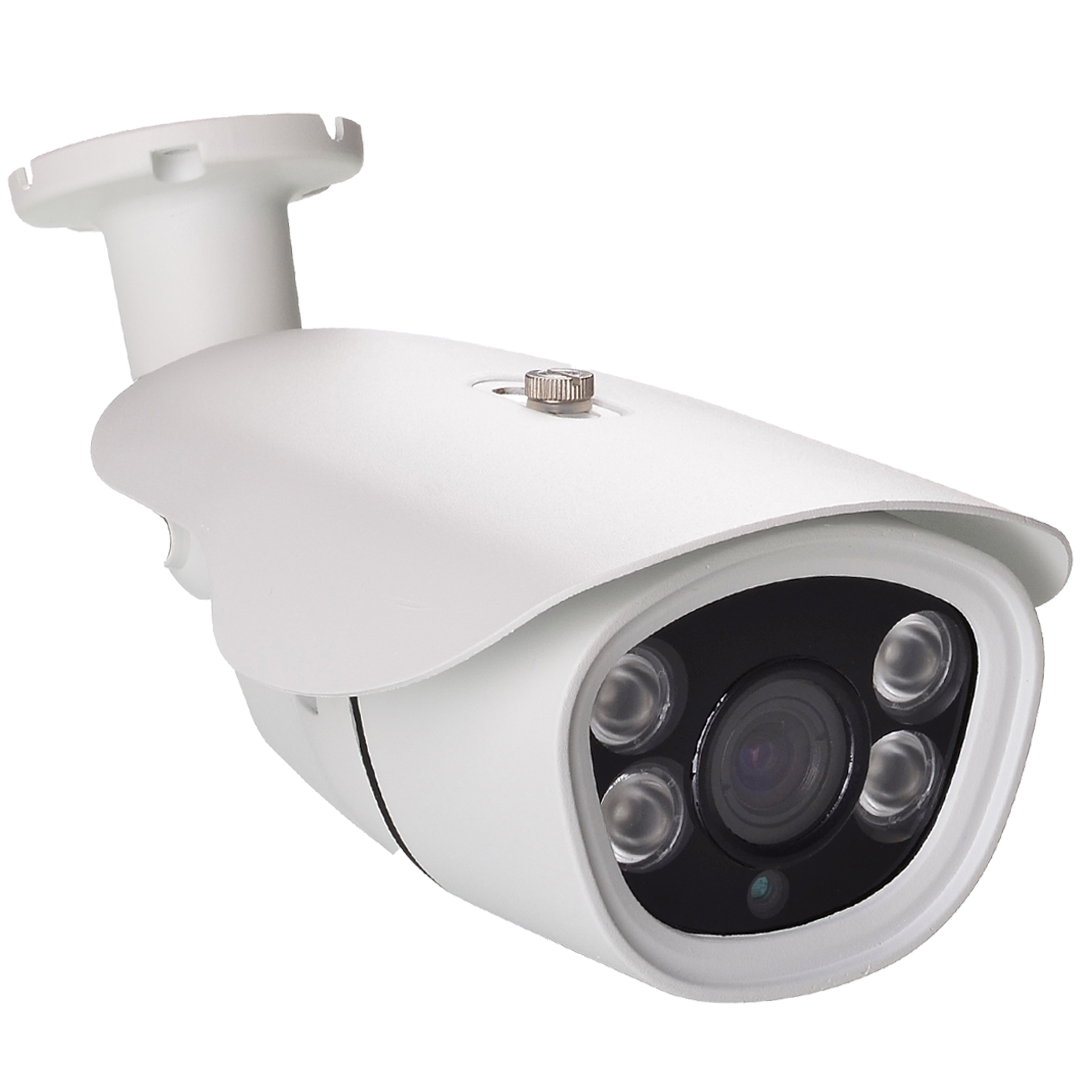

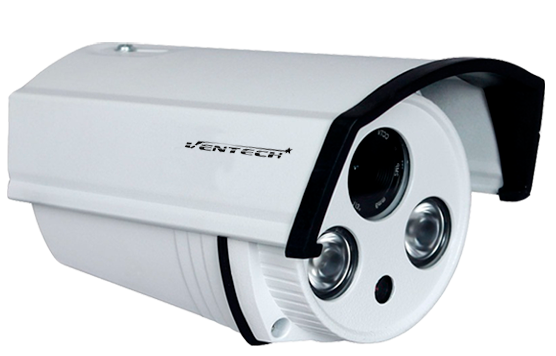

• 2 array LEDs; listed IR range: 45 m
• Metal housing; automatic day/night IR cut

• 4 array LEDs; listed IR range: 50 m
• Metal housing; 12V DC power

• 36 infrared LEDs; listed IR range: 30 m
• Metal housing; 12V DC power

• Listed IR range: 45 m
• Metal housing; 12V DC power

Infrared LED count differs within the original listing; confirm before ordering.

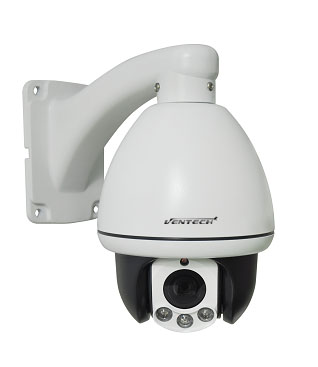

• 360° continuous pan; 0–90° tilt
• Listed IP66 weather protection
• 128 presets; listed IR range: 30–40 m

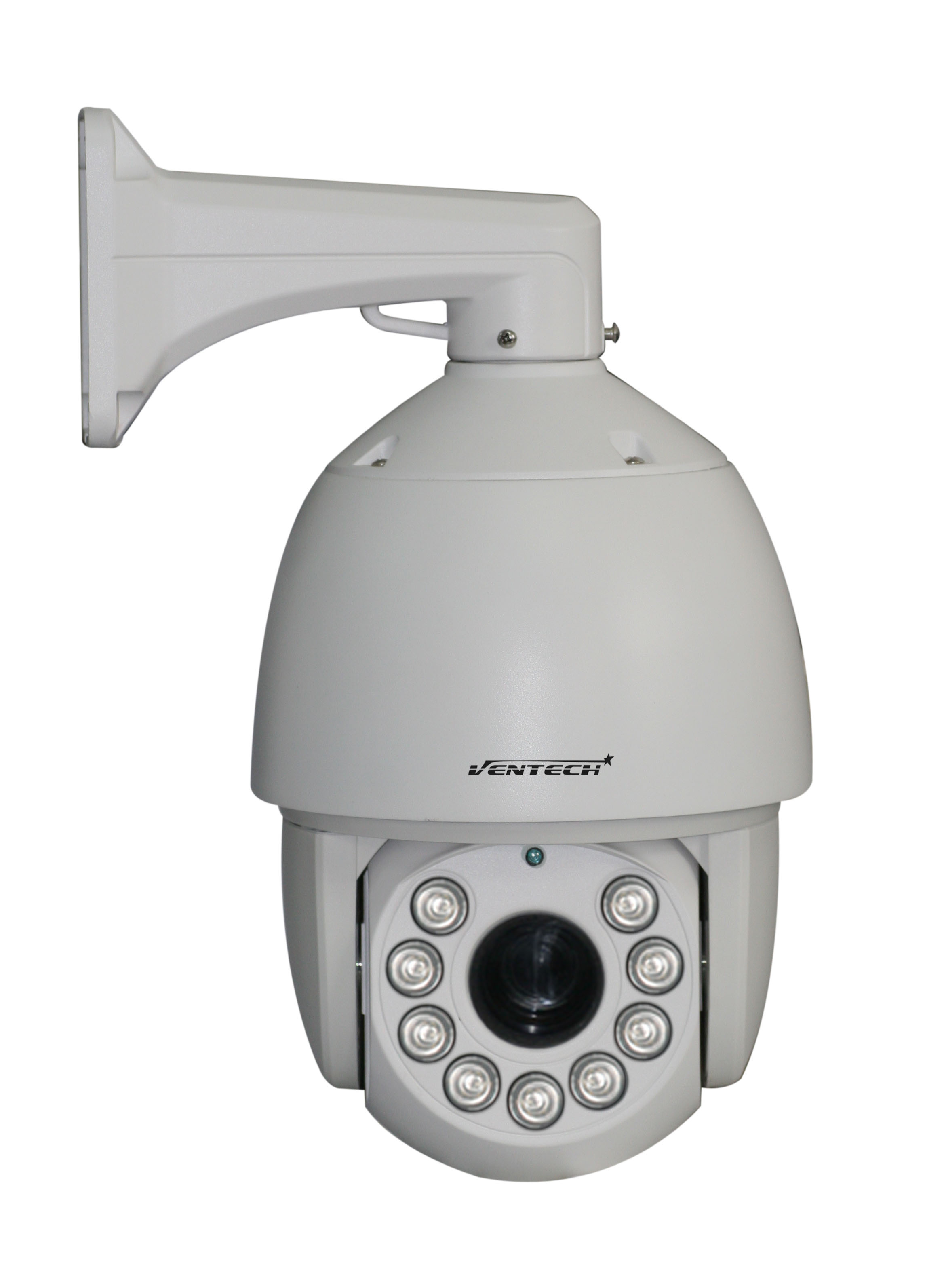

• 360° continuous pan; 0–90° tilt
• listed IR range: 100–120 m
• Listed IP66 weather protection

Confirm lens and zoom specifications: the original listing contains inconsistent focal-length information. Preset counts also differ between the overview and detail pages; confirm the current specification.

• 360° continuous pan; 0–90° tilt
• listed IR range: 100–120 m
• Listed IP66 weather protection

Confirm exact video resolution: the original listing gives conflicting HD resolution details. Preset counts also differ between the overview and detail pages; confirm the current specification.

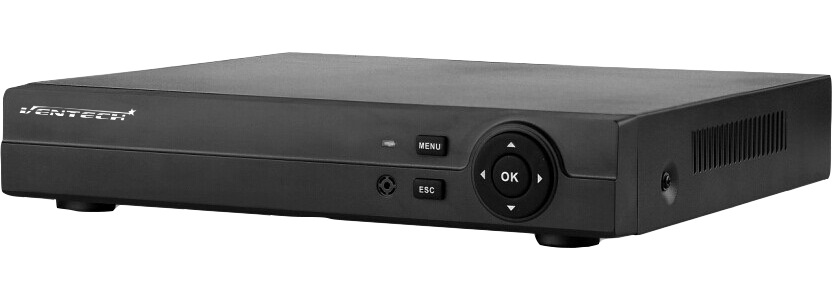

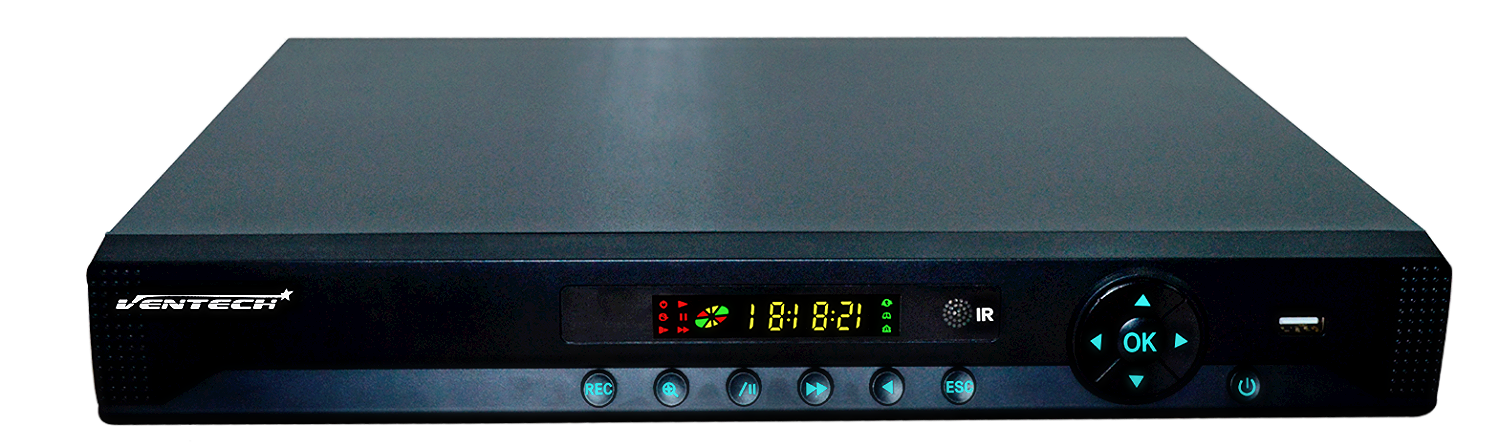

• 2 SATA ports; listed storage support up to 4 TB
• 6 audio inputs; 4 alarm inputs
• HDMI, VGA and RCA video outputs

Confirm supported channel combinations, frame rate and storage limits for the exact firmware.

• 2 SATA ports; listed storage support up to 3 TB
• 4 audio inputs; RS485 PTZ control
• HDMI, VGA and RCA video outputs

• 1 SATA port; listed storage support up to 3 TB
• 2 audio inputs; RS485 PTZ control
• HDMI, VGA and RCA video outputs

Confirm frame rate and storage limits for the exact firmware.

• 1 SATA port; listed storage support up to 4 TB
• 4 audio inputs; RS485 PTZ control
• HDMI, VGA and RCA video outputs

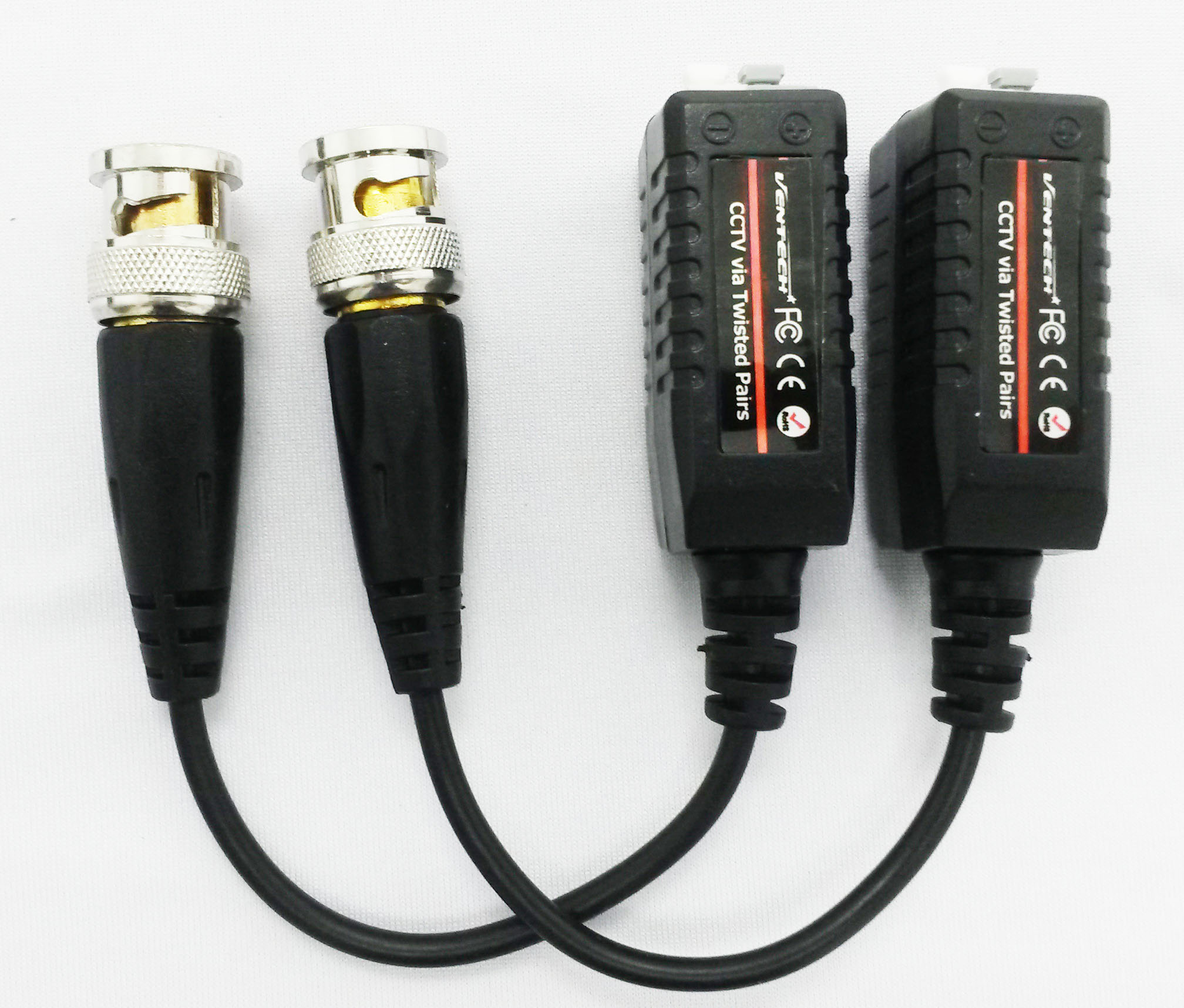

• ABS enclosure
• Listed distance: 400 m with passive receiver / 1,000 m with active receiver

• ABS enclosure
• Listed distance: 400 m with passive receiver / 1,000 m with active receiver

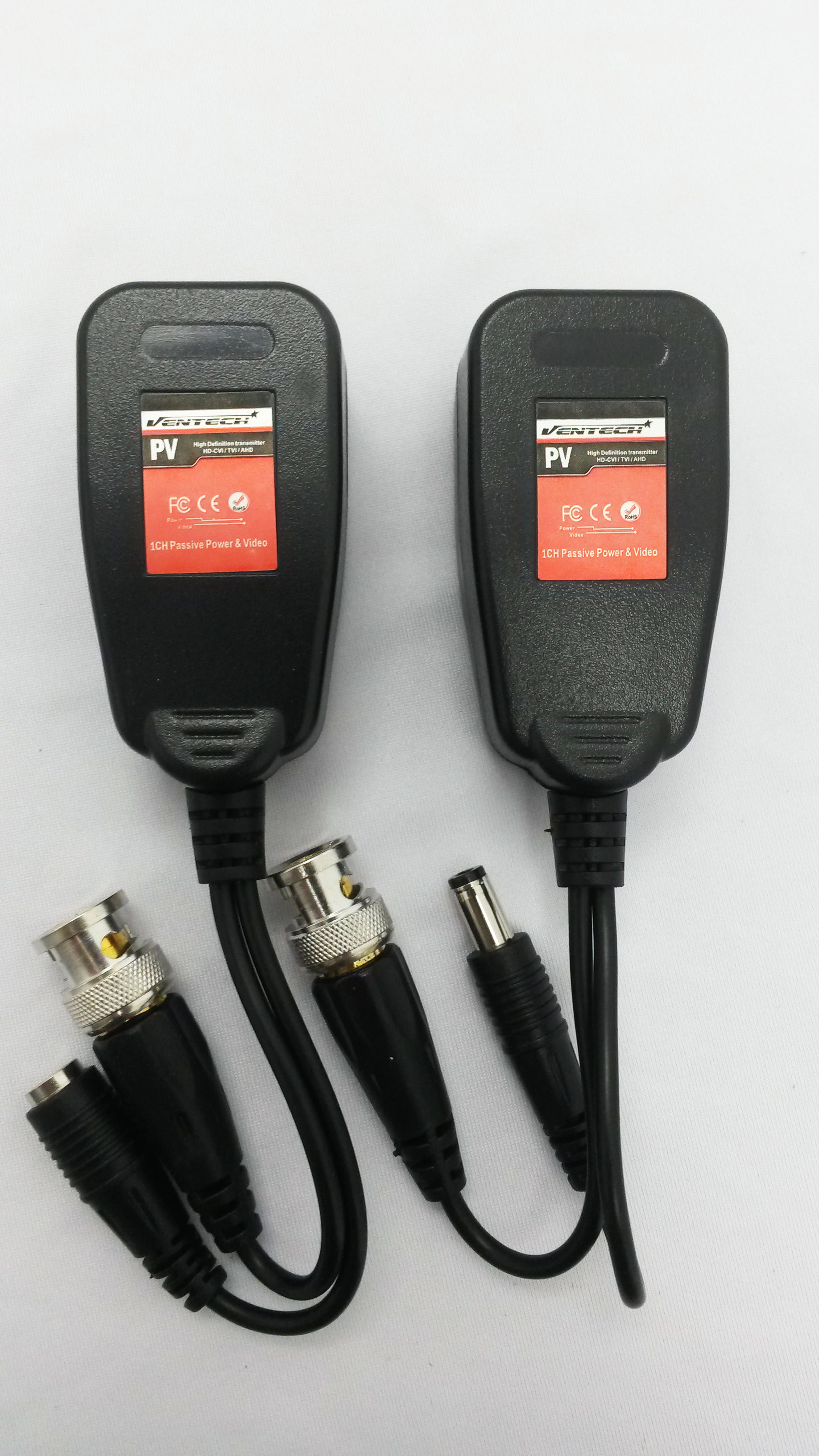

• Power and surge-protection indicator LEDs
• Listed video distance: 450 m; power distance: 300 m

Transmission and power distances depend on cable, load and installation conditions.

• Power and surge-protection indicator LEDs
• Listed video distance: 450 m; power distance: 300 m

Transmission and power distances depend on cable, load and installation conditions.

• Screw terminals and RJ45 connection options
• Listed distance: 400 m passive / 1,000 m active

• Screw terminals and RJ45 connection options
• Listed distance: 400 m passive / 1,000 m active

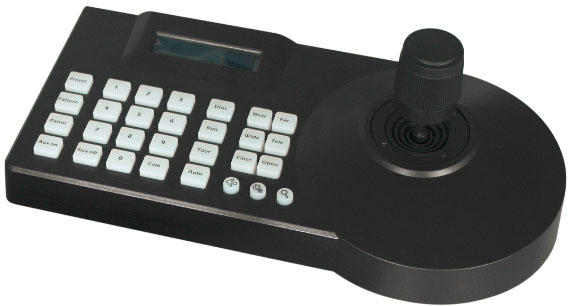

• PTZ camera control
• Password and keyboard lock functions

• Overvoltage, overcurrent and short-circuit protection
• Listed operating temperature: 0–40°C

• Overvoltage, overcurrent and short-circuit protection
• Listed operating temperature: 0–40°C

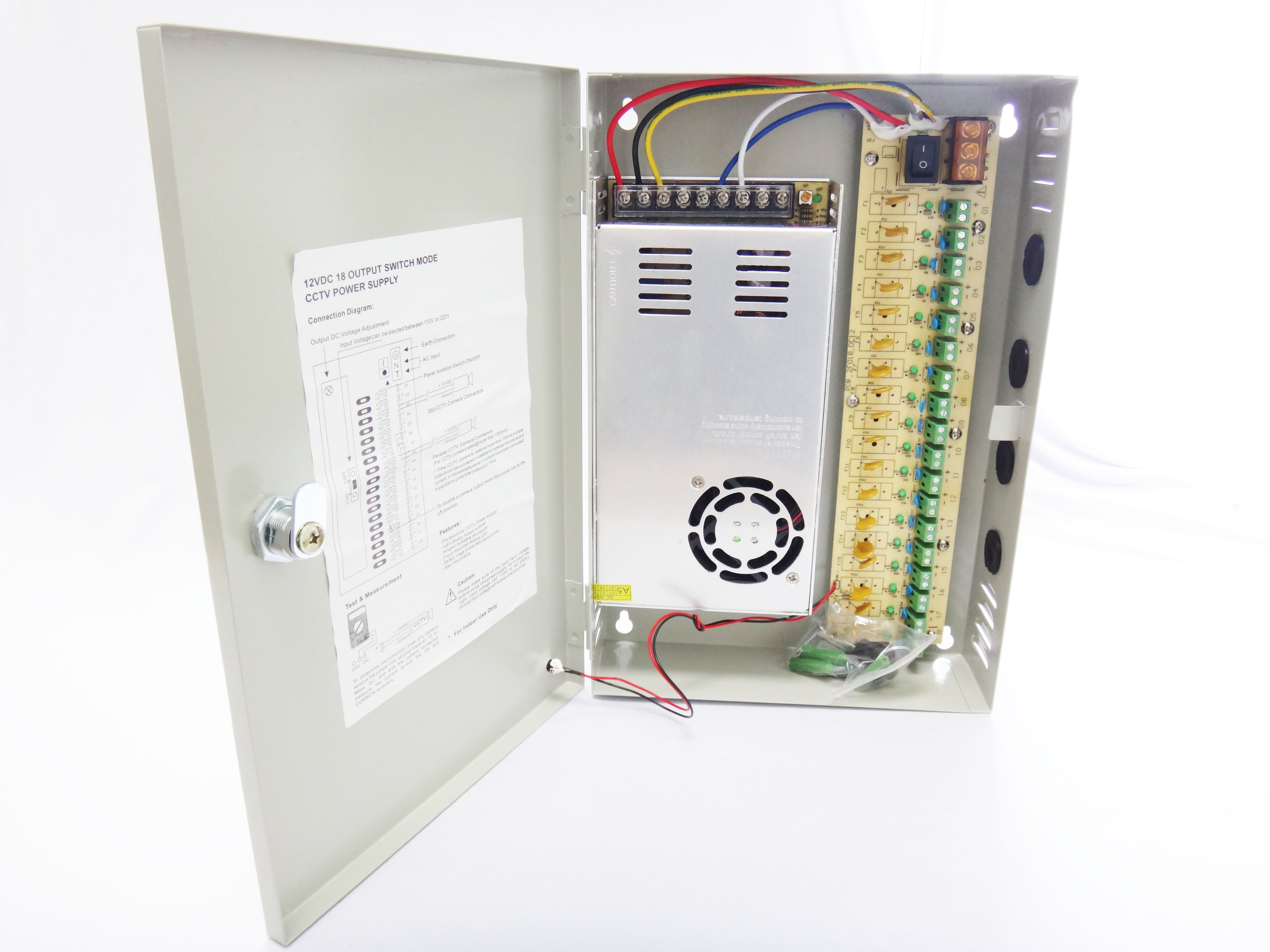

• 30A / 18-channel configuration
• 360W model designation

• Lockable clasp
• Mount with cable pass-through

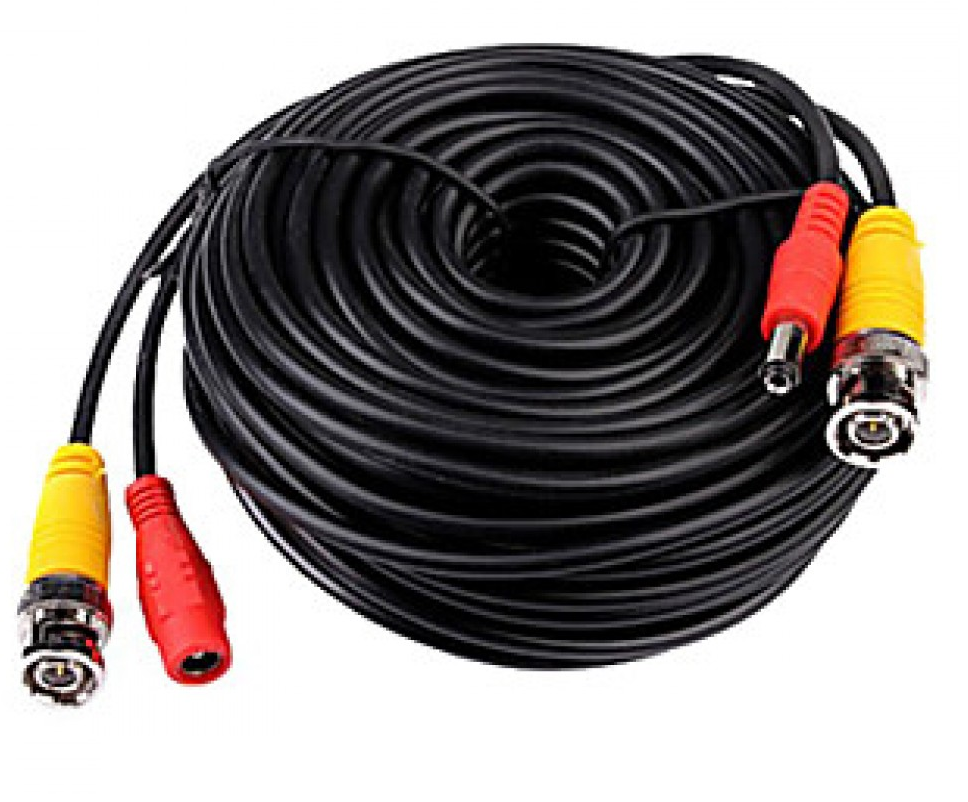

• Solid copper conductors
• Black PVC jacket

The original specification table also uses VT-PBC020. Confirm the model code and cable specification before ordering.

• Solid copper conductors
• Black PVC jacket

The original specification table also uses VT-PBC030. Confirm the model code and cable specification before ordering.

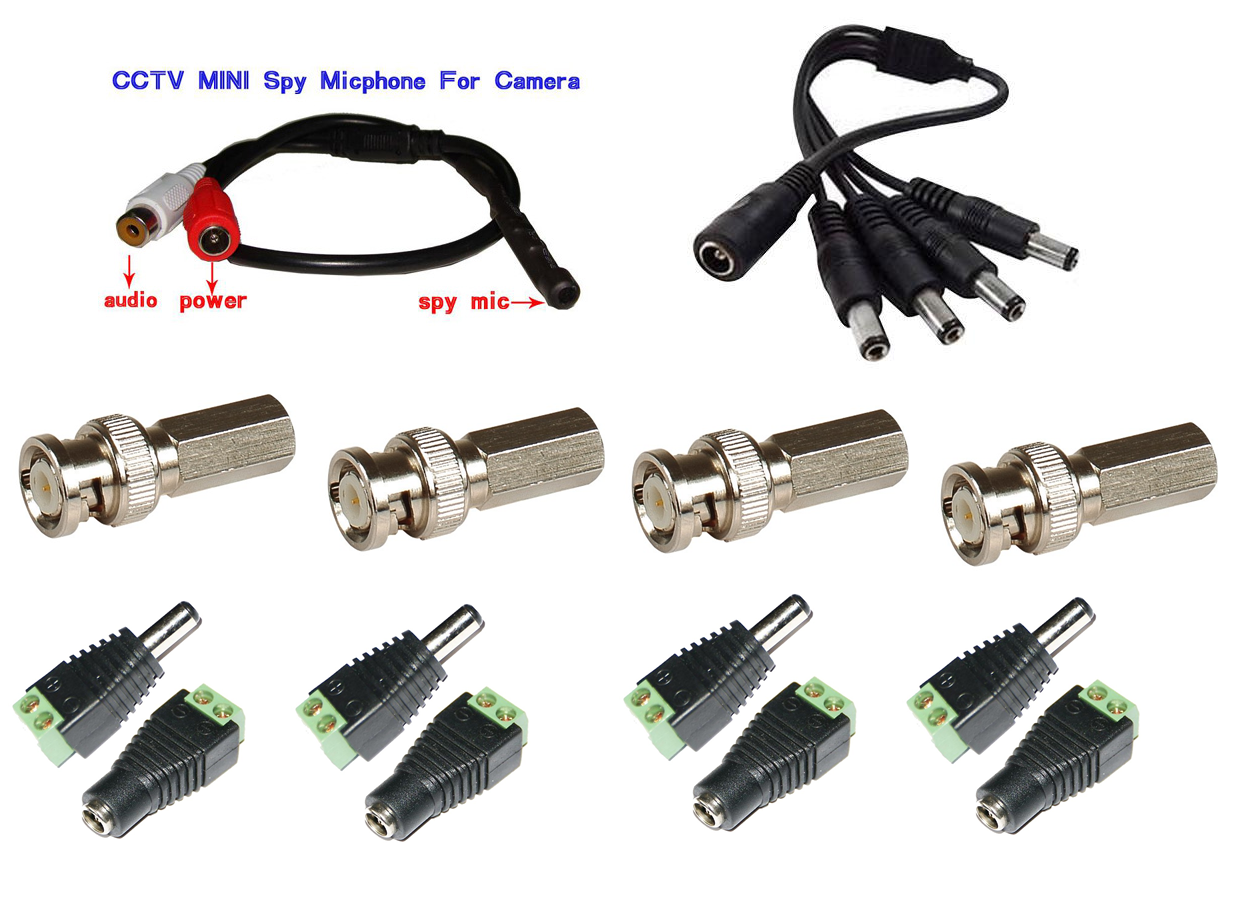

Individual connector model codes are not provided in the original catalog.
